Thông tin chi tiết sản phẩm:
Thanh toán:
|
| Phạm vi đo lường: | 0,01ppm - 10000ppm | Sự chính xác: | 0,01ppm |
|---|---|---|---|
| tối thiểu Nghị quyết: | 0,01ppm | Gas và ống tích hợp của máy dò: | Chiều dài tiêu chuẩn là 3 mét (có thể được tùy chỉnh theo yêu cầu, tối đa 10 mét) |
| Cáp đầu vào năng lượng: | 2 mét | Nguồn đầu vào: | 220V ± 22V 50Hz ± 2Hz (cung cấp điện biến tần lithium bên ngoài có sẵn) |
| Làm nổi bật: | 0.01ppm SF6 Leakage Detector,0.5s SF6 Leakage Detector |
||

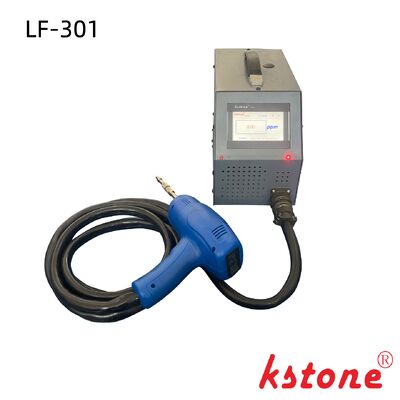

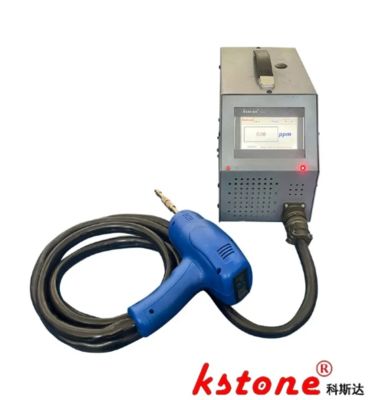

SF6 Leakage Detector, 0.01ppm Quantification, ≤0.5s Response, External Lithium Battery Support, Low Maintenance Cost [LF-301]
Overview
It adopts the principle of low-voltage ionization in a high-frequency magnetic field. The product has no radiation source, which is safe and reliable. There are no vulnerable parts in the product, and the usage and maintenance cost is low. It is durable. An external lithium battery inverter power supply is required when needed.
Accurately quantify 0.01ppm.
Technical Parameters:
|
Measurement Range |
0.01ppm - 10000ppm(v) |
|
Measurement Accuracy |
0.01ppm(v) |
|
Minimum Resolution |
0.01ppm(v) |
|
Recovery Time from "Poisoning" |
≤10 seconds in an environment of 99.99% SF6 |
|
Response Time |
≤0.5 seconds for 10ppm |
|
Indication Method |
Direct display of ppm on the touch screen with a resolution of 0.01ppm; for example, 99.99ppm |
|
Gas and Electric Integrated Hose of the Detector |
Standard length is 3 meters (Can be customized as required, up to 10 meters) |
|
Power Input Cable |
2 meters |
|
Input Power |
220V±22V 50Hz±2Hz (External lithium battery inverter power supply is available) |
|
Ambient Temperature |
5℃ - 45℃ |
|
Ambient Humidity |
≤85% |
|
Power |
≤100W |
|
Net Weight of the Whole Machine |
Detector: 1.2Kg |
|
External Dimensions of the Main Unit |
310×168×200mm |
|
Outer Packaging |
Aluminum alloy anti-collision box |
|
Gross Weight |
12Kg |
|
External Dimensions of the Aluminum Alloy Box |
370*320*270mm |
