SF6 Mixed Gas Analyzer for Dew Point Measurement SF6 Purity Analysis and Decomposition Gas Detection

  • SF6 Mixed Gas Analyzer for Dew Point Measurement SF6 Purity Analysis and Decomposition Gas Detection
Nguồn gốc Thượng Hải
Hàng hiệu KSTONE
Chứng nhận ISO9000
Số mô hình KS30+
Số lượng đặt hàng tối thiểu 1
Giá bán $18100-20000
chi tiết đóng gói Thùng / hộp gỗ
Thời gian giao hàng 15 ngày làm việc
Điều khoản thanh toán T/T
Khả năng cung cấp 1000 đơn vị mỗi năm
Thông tin chi tiết sản phẩm
Phạm vi đo điểm sương -80°C ~ +20°C Sự chính xác ±0,5% hoặc ±0,1%
Dải đo độ tinh khiết SF6 0 ~ 100%
Làm nổi bật

SF6 gas analyzer dew point measurement

,

SF6 purity analyzer decomposition detection

,

SF6 gas tester with warranty
Để lại lời nhắn
Mô tả sản phẩm

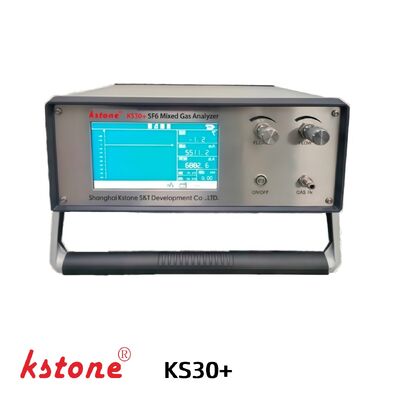

KS30+ SF6 Mixed Gas Analyzer

The KS30+ SF6 Mixed Gas Analyzer is a high-performance portable gas analysis instrument designed for comprehensive testing of SF6 mixed gases used in GIS, GIL, circuit breakers and high-voltage electrical equipment.

The analyzer integrates dew point measurement, SF6 purity analysis, SF6/N2 gas ratio testing, CF4 concentration analysis, decomposition gas detection and trace oxygen monitoring into a single intelligent platform. Compared with conventional SF6 analyzers, the KS30+ adopts an advanced dual-pipeline sampling design, allowing independent gas flow control for moisture measurement and gas component analysis, ensuring higher testing accuracy and improved measurement stability.

Equipped with a large LCD display, stainless steel control panel, built-in thermal printer and USB communication interface, the KS30+ provides reliable and efficient gas quality assessment for power utilities, GIS manufacturers, maintenance contractors and SF6 gas service providers.

Designed with a modular architecture, the analyzer can be customized according to different gas compositions and customer testing requirements.


Key Features
  • Simultaneous dew point, purity and decomposition gas analysis
  • Supports SF6/N2 mixed gas ratio measurement
  • Supports SF6/CF4 mixed gas ratio and CF4 concentration analysis
  • Measures H₂S, SO₂, HF and CO decomposition gases
  • Trace O₂ monitoring capability
  • Advanced dual-pipeline gas sampling design
  • High-accuracy sensor technology
  • Built-in thermal printer for on-site report printing
  • USB communication and data export interface
  • Portable field-ready design
  • Modular and customizable configuration
  • Suitable for GIS, GIL and mixed gas insulated equipment

Applications
  • Gas Insulated Switchgear (GIS)
  • Gas Insulated Transmission Lines (GIL)
  • SF6/N2 Mixed Gas Equipment
  • SF6/CF4 Mixed Gas Equipment
  • High-Voltage Circuit Breakers
  • Electrical Power Utilities
  • Transformer and Switchgear Manufacturers
  • SF6 Gas Recycling Systems
  • SF6 Gas Recovery and Purification Projects
  • Preventive Maintenance Programs
  • Power Generation and Transmission Facilities
  • Field Service Engineering Operations

Technical Specifications
Dew Point Measurement
Parameter Specification
Measurement Range -80°C ~ +20°C
Accuracy ±1.0°C
SF6 Purity Analysis
Parameter Specification
Measurement Range 0 ~ 100%
Accuracy ±0.5% or ±0.1%
CF4 Concentration Analysis
Parameter Specification
Measurement Range 0 ~ 80%
Accuracy ±0.5%
Decomposition Gas Detection
Gas Measurement Range Accuracy
H₂S 0 ~ 100 μL/L ≤10 μL/L: ±0.3 μL/L; >10 μL/L: ±3%
SO₂ 0 ~ 2000 μL/L ≤50 μL/L: ±2.0 μL/L; >50 μL/L: ±4%
HF 0 ~ 10 μL/L ±0.5%
CO 0 ~ 500 μL/L ±0.5%
Additional Gas Components
Gas Measurement Range Accuracy
N₂ 0 ~ 100% ±0.5%
O₂ 0 ~ 1% ±0.05%
Customized Modular Design

The KS30+ adopts a modular customized architecture that allows flexible configuration according to customer requirements and gas compositions.

Available optional modules include:

  • SF6 Purity Analysis
  • Dew Point Measurement
  • SO₂ Detection
  • H₂S Detection
  • HF Detection
  • CO Analysis
  • N₂ Concentration Analysis
  • O₂ Concentration Analysis
  • CF4 Concentration Analysis
  • Customized Mixed Gas Solutions

This flexible design makes the KS30+ suitable for both standard SF6 testing and specialized mixed gas applications.


Advantages of KS30+ SF6 Mixed Gas Analyzer
Designed for Mixed Gas Applications

Specifically developed for SF6/N2 and SF6/CF4 mixed gas systems used in modern gas-insulated electrical equipment.

Comprehensive Multi-Gas Analysis

Combines moisture, purity, decomposition gas and gas ratio testing in one portable instrument.

Dual-Pipeline Sampling Technology

Independent sampling channels improve measurement stability and eliminate flow-rate interference between dew point and gas component testing.

High Measurement Accuracy

Advanced sensors deliver reliable laboratory-grade performance for field and workshop applications.

Flexible Customization

Modular architecture enables customized solutions for different industries and testing requirements.

Portable & Field Ready

Compact design suitable for substations, GIS maintenance projects and on-site service operations.


Frequently Asked Questions
What gases can the KS30+ analyze?

The KS30+ can analyze SF6 purity, dew point, H₂S, SO₂, HF, CO, N₂, O₂ and CF4 concentration depending on the selected configuration.

Can the KS30+ test SF6/N2 gas ratio?

Yes. The analyzer is specifically designed for SF6/N2 mixed gas analysis and provides accurate gas composition measurement for mixed gas insulated equipment.

Can the analyzer measure CF4 concentration?

Yes. The KS30+ supports CF4 concentration testing and SF6/CF4 mixed gas analysis for specialized gas-insulated applications.

Is the analyzer suitable for GIS equipment?

Yes. The KS30+ is widely used for GIS, GIL, circuit breakers and other SF6 insulated electrical equipment.

Can the analyzer be customized?

Yes. The modular design allows customized configurations based on customer testing requirements.

Does the analyzer support decomposition gas monitoring?

Yes. The system supports SO₂, H₂S, HF and CO decomposition gas analysis for equipment condition assessment.

Can test results be exported?

Yes. The analyzer includes a USB communication interface and supports data storage and report management.


Why Choose Shanghai Kstone?
  • Professional SF6 gas analysis equipment manufacturer
  • Contributor to China's SF6 industry standards
  • Extensive experience in power utility applications
  • OEM and customized solution support
  • Fast technical response
  • Reliable industrial-grade product quality
  • Global B2B export experience
  • Complete SF6 testing and gas handling product portfolio

Contact Us

Looking for a reliable SF6 mixed gas testing solution?

Shanghai Kstone provides professional SF6 gas analyzers, leak detectors, gas recovery systems, purification equipment and customized gas handling solutions for power utilities and electrical equipment manufacturers worldwide.

Request a Quote Today
Send us your technical requirements and application details. Our engineering team will provide a suitable solution within 24 hours.
